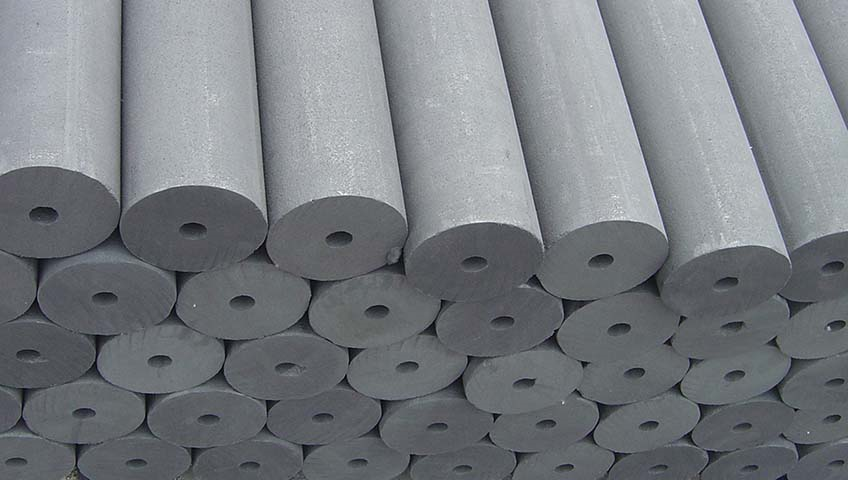

GRAPHITE ANODES
| Dimensions | Connection Type | Weight | Surface Area | Impregnation Material |
|
3″ diameter x 60” (76 x 1524mm) |
Center 20 mm x 30″ deep | 26 lb (11.8 kg) | 4.025 ft2 (0.374 m2) | Wax |
|
3″ diameter x 60” (76 x 1524mm) |
Center 25 mm x 30″ deep | 26 lb (11.8 kg) | 4.025 ft2 (0.374 m2) | Wax |
|
4″ diameter x 80″ (102 x 2032mm) |
Center 20 mm x 40″ deep | 69 lb (31.3 kg) | 7.156 ft2 (0.665 m2) | Wax |
|
4″ diameter x 80″ (102 x 2032mm) |
Center 25 mm x 40″ deep | 69 lb (31.3 kg) | 7.156 ft2 (0.665 m2) | Wax |

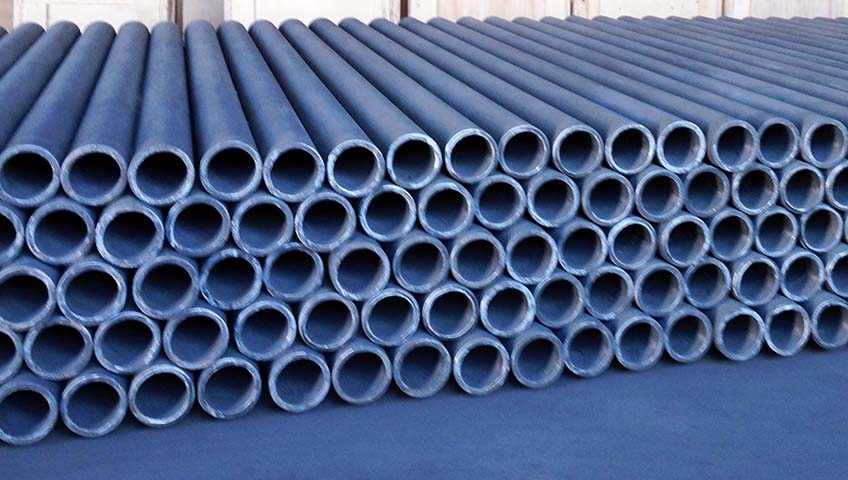

BADGER CAST TUBULAR ANODE
| Common Name | Overall Length | Diameter | Weight |
| TA-2 | 84″ (2133 mm) | 2.20” (56 mm) | 50 lbs (22.7 kg) |
| TA-3 | 84″ (2133 mm) | 2.64” (67 mm) | 70 lbs(31.8 kg) |
| TA-4 | 84″ (2133mm) | 3.74” (95 mm) | 90 lbs (40.9 kg) |
Badgercord Zinc Ribbon
| Product Description | Cross Section | Weight | Wire Core Diameter | Available Lengths* | Packaging | Bending Dia. (min) at -4oF, -20oC |
| Super Size | 1″ x 1-1/4″ 25.4mm x 31.8mm | 2.4 lb/ft 3.57 kg/m | 0.189″ 4.8mm | 100 ft | hand coil | 27.55″ 700mm |
| Plus Size | 5/8″ x 7/8″ 15.9mm x 22.2mm | 1.2 lb/ft 1.785 kg/m | 0.134″ 3.4mm |
100 ft 200 ft | hand coil or wooden reels | 9.84″ 250mm |
| Standard Size | 1/2″ x 9/16″ 12.7mm x 14.3mm | 0.6 lb/ft 0.893 kg/m | 0.134″ (±0.010″) 3.4mm |
500 ft 1,000 ft 3,600 ft | wooden reels | 5.91″ 150mm |
| Small Size | 11/32″ x 13/32″ 8.7mm x 11.9mm | 0.25 lb/ft 0.372 kg/m | 0.102″ (±0.008″) 2.6mm | 500 ft 1,000 ft 3,600 ft | wooden reels | 3.93″ 100 |
